David A's Europa

Radiator

Back to europa page

The engine coolant system is composed of

Radiator, June 2013

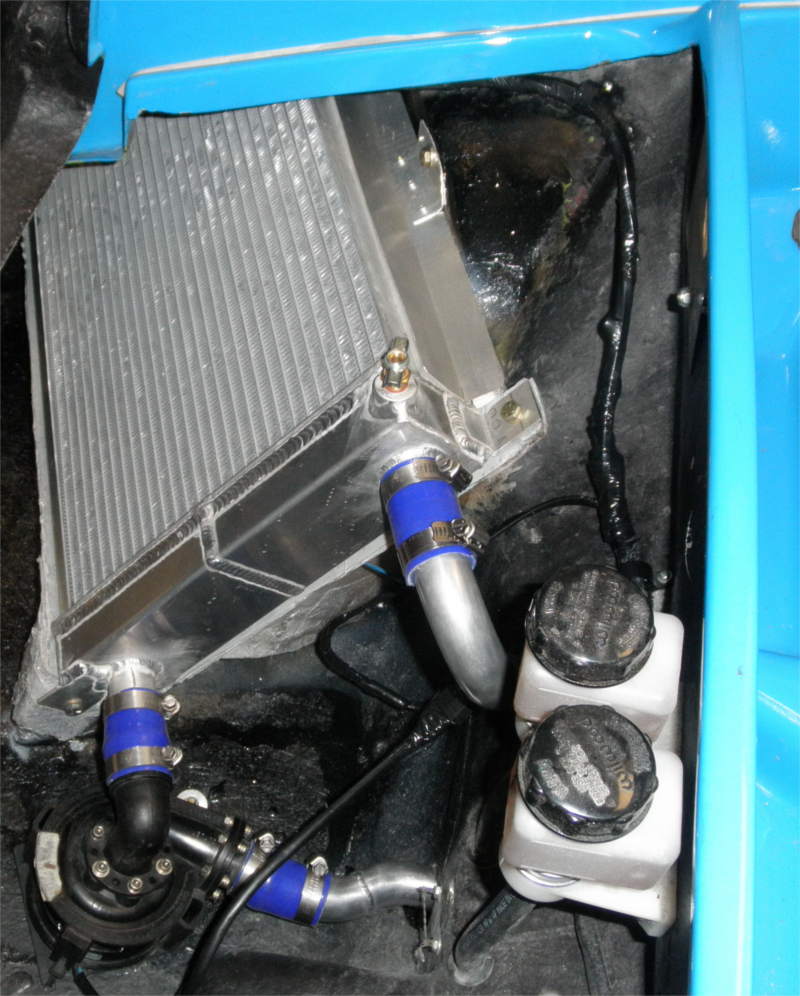

The AFCO-based radiator (see below for part numbers) installed as of June 2013. There was a major fiberglass project to mount the radiator with its Davies-Craig pump and a significant revision and cleanup of the coolant plumbing. Instead of a thick 131 square inch radiator I have a 225 square inch thinner radiator with, I think, better air and coolant flow. Notice the new position of the coolant pump. Now the hot water comes in at the TOP of the radiator and out the bottom. Reversing the flow this way simplified the plumbing a lot and put the pump at the exit of the radiator. I am quite sure the new system takes about 2 gallons of coolant, a full gallon less than the initial version I created in 2007, saving 8 pounds. Nice feature: the new radiator can be slipped in and out without removing the right hand headlight.

Picture of the 2013 Europa radiator

Back to top

Radiator 2005-2012

The Sep 2005 Europa list group buy radiator was made by Macs Radiator, is all aluminum, and has a screw-in temp sensor. Fits just like standard. I did have to reverse the fan blade and wiring to get the fan to push efficiently: as received it pulled air (wrong direction!). Very nice. No more watching the temperature gauge and worrying all the time. Stays cool and on hot days the fan comes on reliably and cools things down. On Thunderhill Raceway Park at 97 degrees ambient the water temp got just to about that on track (September 2009 with Zetec engine). The stock water temperature gauge is pretty hard to read with any accuracy...

Picture of the 2005 Europa radiator

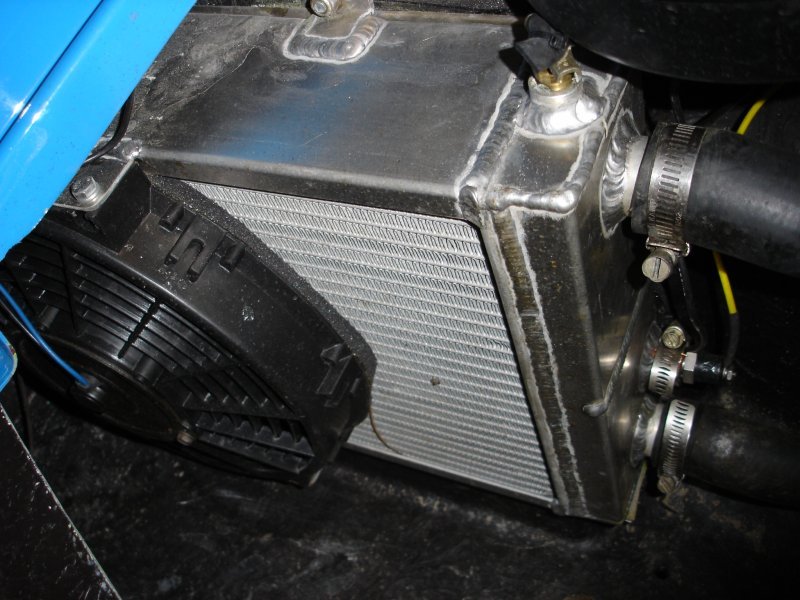

Here is the 2005 group buy radiator in place. I'll write of left and right as it appears in the above picture. (For the picture we are at the front of the car looking toward the rear of the car.) The Europa radiator is a bit different from most radiators. The water enters at the bottom (bottom right in the picture), flows across the bottom half to the left, up the left side tank, and then back right to the upper outlet hose. So the inlet is on the bottom and the outlet on the top! The right end tank has a baffle mid-way so water is forced thru the small tubes, it cannot go up the right-end tank to the outlet.

The screw-in temp sensor then has to be toward the bottom of the right tank so it measures the incoming (hottest) water temperature.

The radiator cannot be removed or replaced without removing the nearby headlight (it's not in the picture, but it is very close indeed)! And the protective steel shell of the headlight pod had to be bashed in a bit so the radiator would fit. This interference fit is not new, it is just a bit worse with the new radiator (as compared to the stock radiator).

Back to top

Radiator and related sizes

But by 2012 and the story was not so good. All of us with TwinCams or Zetec or Duratec are either overheating on track or have already changed to a bigger radiator. Notice all the track-capable radiators in Elan/Europa are over 200 square inches in fin area. The radiator fans all seem to weight the same, 3 pounds, so left out of the table. Standing the 3 Europa radiators (first 3 below) up and filling with water I note the AFCO radiator fills much more readily, the tubes seem to flow water more easily. In this table measurements are inches and weight is in pounds.

Fins W Fins H Thickness Area Volume Weight Description
15.5 10 3.75 155 581 20 Stock Copper Europa Rad
24 Stock Copper Europa Rad with water
13.75 9.5 3.75 131 490 15 2005 Group Buy Rad
20 2005 Group Buy Rad with water
18 12.5 2.5 225 563 11 AFCO AFC-80107N
17 AFCO AFC-80107N with water
22.5 11.5 3 259 776 red/white Europa rad
18 12.5 3 225 675 11.5 Black Europa rad
14 9.5 133 Body hole to RF wheel well
16 10 2 160 320 13 Elan S4 stock rad
18 11.5 3 207 621 Elan 26R race rad
25 22 2 550 1100 2000 Toyota 4Runner 3.6L Rad
24 13 1.5 312 468 1984 Scirocco, approx
26.6 12.6 1.25 335 419 1987 Scirocco (plastic tanks)

Back to top

Electric Water Pump

The coolant water is circulated by a Davies-Craig EWP-80 electric pump.

As of 2017 the water pump has a blank cover (from DunnellEngines.com) and just a hollow inside.

As of June 2013 the pump is repositioned and of course the radiator is much larger. A much cleaner setup with much better cooling capability.

As of June 2012 the electric pump is controlled by a Davies-Craig digital controller (Part Number 8020).

Picture of the 2013 Europa pump location

UPDATE: October 2011: The plastic left after removing the vanes eventually shattered inside the pump and probably blocked some water flow. This was discovered on stripping down the engine looking for a bad bearing. But there was no bad bearing, there were just really long-lived bubbles in the oil that confused me. The stripdown did help as the broken plastic pump remains could then be removed! Don't make the mistake I did: remove the plastic inside the pump entirely if you remove the pump vanes at all.

Back to top

Thermostat and Housing

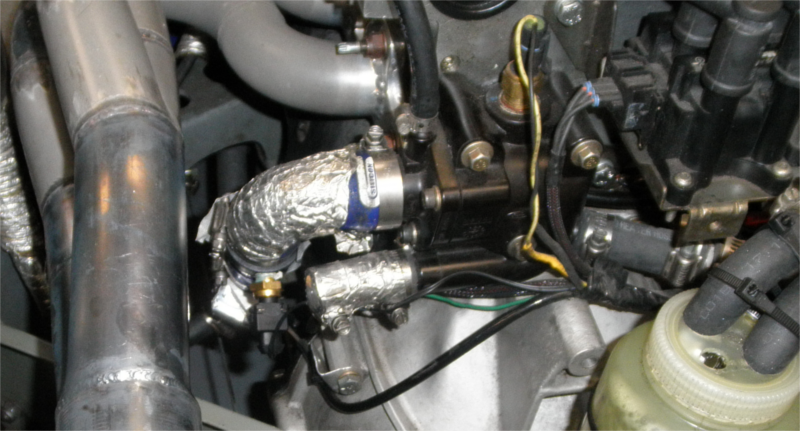

The Ford thermostat housing is a very nice plastic item. Because it's Ford designed one is guaranteed it will work well. The top has a 1/2 inch pipe thread fitting for the ECU's temperature sensor and a small water-bubble-elimination pipe sticking up. On the bottom (and invisible in this picture) is another fitting for a temperature sensor, here I screwed in the stock TwinCam sensor and wired it to the dashboard water temperature gauge. There are three main water outlets to the thermostat. The big one with the blue silicone hose is the main coolant path. Because the Davies-Craig runs all the time the thermostat has a couple holes drilled in it to provide a low-volume path even when the coolant is cold. The lower-left outlet is constricted as the thermostat opens by the Ford thermostat itself: this outlet is intended for the coolant-return (I think) to the water pump, a short-circuit so the engine warms up fast. Currently this outlet is not connected, it is plugged. The lower-right outlet is intended for a water-heater system (I think). Currently this is also left plugged. I used bits of 3/4 inch coolant hose and manufactured small aluminum plugs on a lathe (with circular grooves on the plugs so they can be easily and firmly retained by the hose clamps).

Picture of the Ford Thermostat June 2013

It's not obvious, but all the hoseclamps on the large hoses are the special sort for Silicone hose. That is, they have smooth steel on 100% of the internal circumference so the hose won't squeeze through the slots. pegasusautoracing.com has the silicone hose and the special hose clamps.

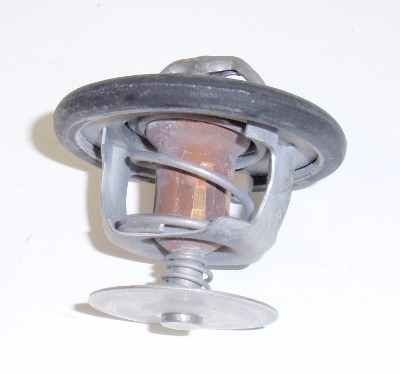

The following is a stock Ford thermostat. As of January 2013 it is no longer used. Removed from the housing. Instead, I use a Davies-Craig digital controller to control the electric water pump and cooling fan. Notice the plate on the stock thermostat, as that is what moves as the thermostat opens and closes one of the housing openings a bit. I removed this one from the car and replaced it with a thermostat rated to open at 170 degrees (ZXTuner.com partnumber 1231) during the period where I used the thermostat (2007-2012).

Picture of the Ford Thermostat in 2012

Back to top

Fill Tank and Coolant Recovery

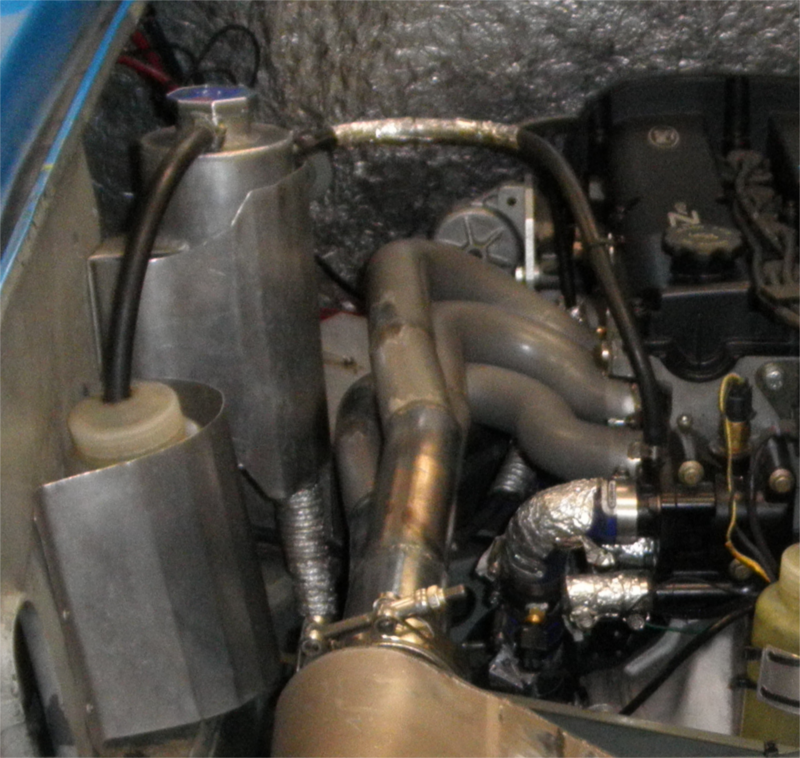

The following picture shows the fill tank and the coolant recovery tank. The aluminum shields are absolutely essential. One prevents the exhaust from heating the coolant, the other prevents the recovery bottle from melting.

Picture of the coolant fill tank

Back to top

Engine inlet/outlet coolant plumbing June 2013

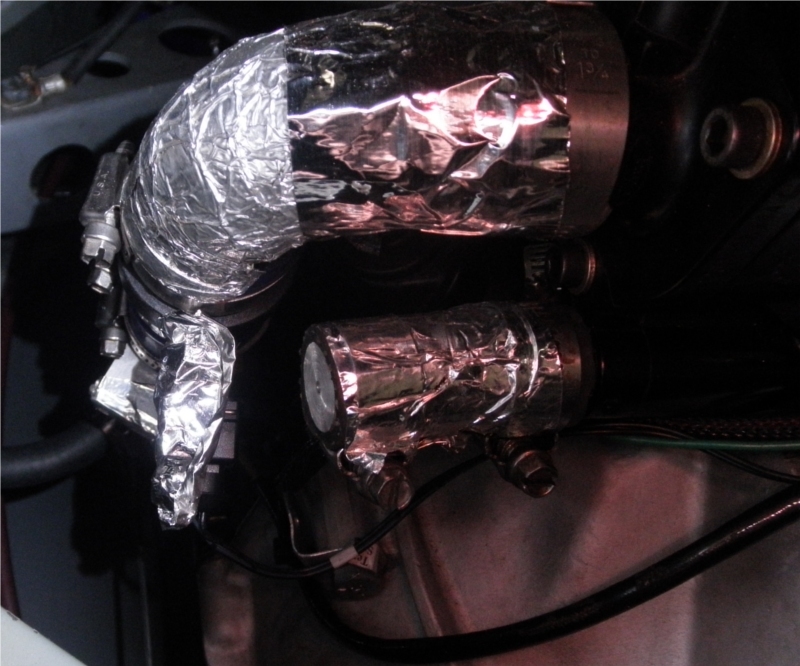

In 2012 there a small change was introduced with the EWP controller. The hot coolant is piped from the engine through a temperature-sensor for the EWP controller (which has an LED warning light on the dash) and then through a surface-effect temperature sensor for an additional (bigger) warning light in on the dash. Things are covered with reflective tape to keep the exhaust from transmitting much heat to the water. The following pic is of the outlet around 90 degrees and then down.

Picture of the engine coolant pipe near thermostat housing

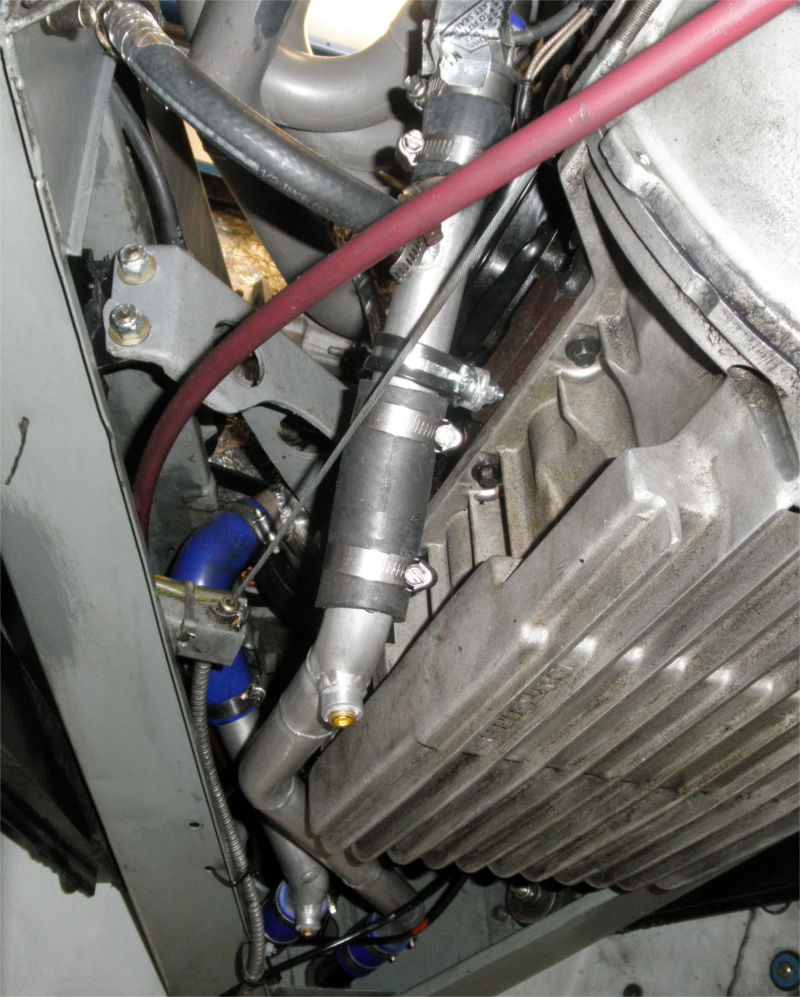

The following is coolant pipes from engine forward into the frame. Notice the brass plugs at the low points. Making it possible to drain the coolant without getting liquid all over the place.

The Davies-Craig sensor and independent sensor do not show well below. The independent sensor is a surface-effect temperature sensor, a REVEFC32 from BurtonPower.com (just used to power a red light on the dash). Burton Power calls it a fan control, but it is really simply a sensor in a tubular housing and nothing sticks into the coolant flow (the 32mm size is identical to the stock 1.25 inch coolant tube size). A very nice item.

Picture of the engine coolant pipe near engine

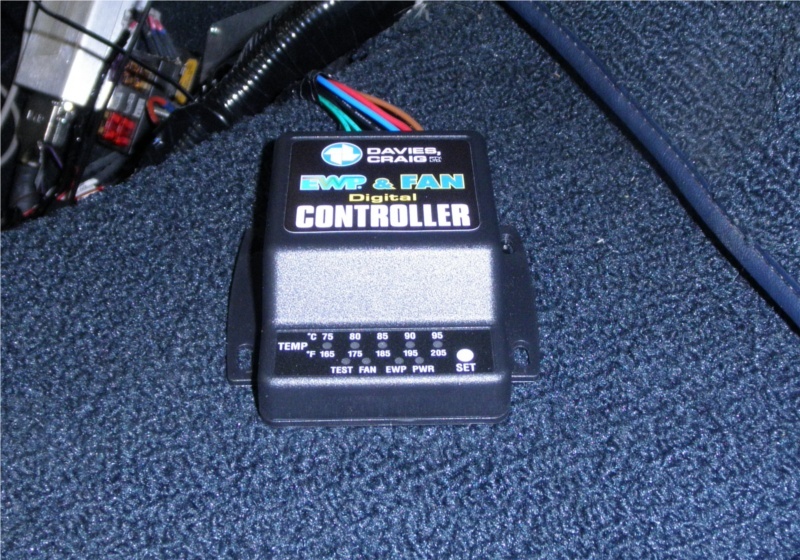

The following is the EWP controller itself. Held to the carpet at driver's elbow by hook-and-loop (the carpet is the loop part).

Picture of the EWP controller

The following is the dash panel relating to water temps. Temp gauges rotated so things are acceptable unless a needle goes to the right of vertical. The sensor red lights are on the black panel which replaces the radio. The bigger red lamp is the independent temp sensor, the tiny red lamp is an error sensor from the EWP controller. The white lamp is a knock sensor warning.

Picture of the water temp dashboard lights

Back to top

Engine Mechanical Water Pump

The mechanical water pump no longer pumps water. I removed the pump drive and installed a simple plate from dunnellengines.com in its place. Europa relies entirely on the Electric Water Pump.

Back to top

In car heater

I will needed the heater for comfort in winter, even our mild winters here in San Francisco. I have a valve, RabbitParts.com 171819809E, which works nicely to control the flow. Of course it is critical to ensure there is a pressure differential from one end of the heater hose to the other end else there will be no flow!
